Avalanche photodiode

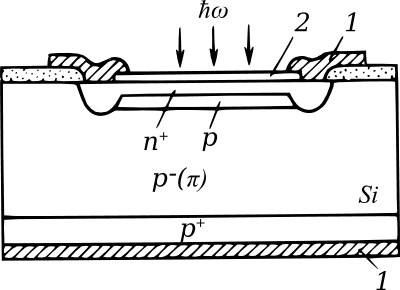

An avalanche photodiode (APD) is a highly sensitive semiconductor photodiode detector that exploits the photoelectric effect to convert light into electricity. From a functional standpoint, they can be regarded as the semiconductor analog of photomultiplier tubes. The avalanche photodiode (APD) was invented by Japanese engineer Jun-ichi Nishizawa in 1952. However, study of avalanche breakdown, microplasma defects in silicon and germanium and the investigation of optical detection using p-n junctions predate this patent. Typical applications for APDs are laser rangefinders, long-range fiber-optic telecommunication, and quantum sensing for control algorithms. New applications include positron emission tomography and particle physics. By applying a high reverse bias voltage (typically 100–200 V in silicon), APDs show an internal current gain effect (around 100) due to impact ionization (avalanche effect). However, some silicon APDs employ alternative doping and beveling techniques compared to traditional APDs that allow greater voltage to be applied (> 1500 V) before breakdown is reached and hence a greater operating gain (> 1000). In general, the higher the reverse voltage, the higher the gain. Among the various expressions for the APD multiplication factor (M), an instructive expression is given by the formula where L is the space-charge boundary for electrons, and is the multiplication coefficient for electrons (and holes). This coefficient has a strong dependence on the applied electric field strength, temperature, and doping profile. Since APD gain varies strongly with the applied reverse bias and temperature, it is necessary to control the reverse voltage to keep a stable gain. Avalanche photodiodes therefore are more sensitive compared to other semiconductor photodiodes. If very high gain is needed (105 to 106), detectors related to APDs called SPADs (single-photon avalanche diodes) can be used and operated with a reverse voltage above a typical APD's breakdown voltage.
