Endohedral fullerene

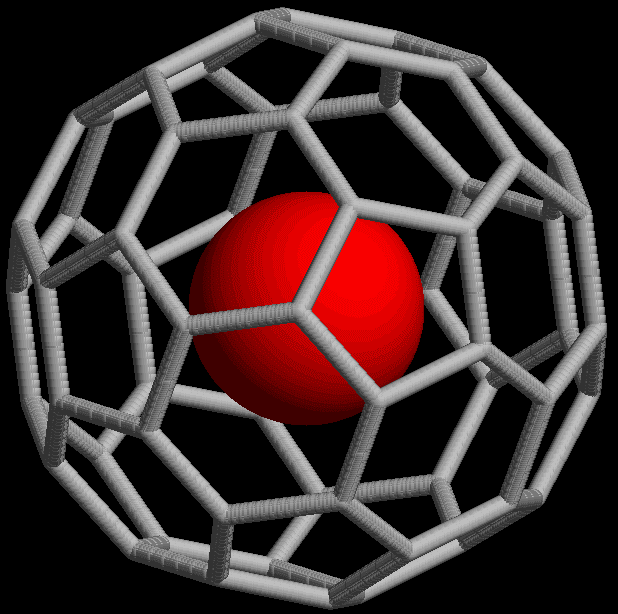

Endohedral fullerenes, also called endofullerenes, are fullerenes that have additional atoms, ions, or clusters enclosed within their inner spheres. The first lanthanum C60 complex called La@C60 was synthesized in 1985. The @ (at sign) in the name reflects the notion of a small molecule trapped inside a shell. Two types of endohedral complexes exist: endohedral metallofullerenes and non-metal doped fullerenes. In a traditional chemical formula notation, a buckminsterfullerene (C60) with an atom (M) was simply represented as MC60 regardless of whether M was inside or outside the fullerene. In order to allow for more detailed discussions with minimal loss of information, a more explicit notation was proposed in 1991, where the atoms listed to the left of the @ sign are situated inside the network composed of the atoms listed to the right. The example above would then be denoted M@C60 if M were inside the carbon network. A more complex example is K2(K@C59B), which denotes "a 60-atom fullerene cage with one boron atom substituted for a carbon in the geodesic network, a single potassium trapped inside, and two potassium atoms adhering to the outside." The choice of the symbol has been explained by the authors as being concise, readily printed and transmitted electronically (the at sign is included in ASCII, which most modern character encoding schemes are based on), and the visual aspects suggesting the structure of an endohedral fullerene. Doping fullerenes with electropositive metals takes place in an arc reactor or via laser evaporation. The metals can be transition metals like scandium, yttrium as well as lanthanides like lanthanum and cerium. Also possible are endohedral complexes with elements of the alkaline earth metals like barium and strontium, alkali metals like potassium and tetravalent metals like uranium, zirconium and hafnium. The synthesis in the arc reactor is however unspecific. Besides unfilled fullerenes, endohedral metallofullerenes develop with different cage sizes like La@C60 or La@C82 and as different isomer cages.
