Scene graph

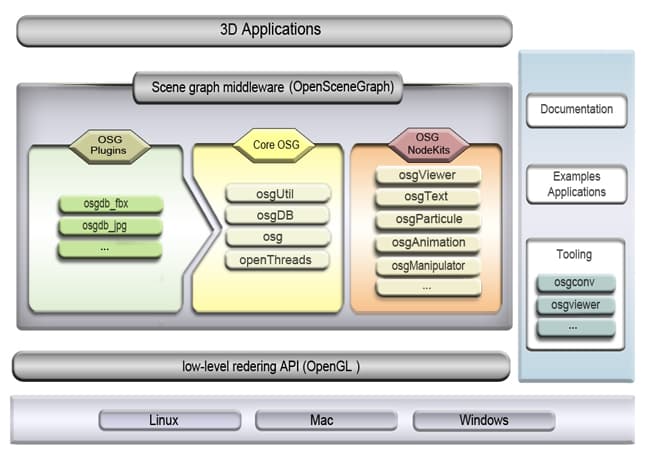

A scene graph is a general data structure commonly used by vector-based graphics editing applications and modern computer games, which arranges the logical and often spatial representation of a graphical scene. It is a collection of nodes in a graph or tree structure. A tree node may have many children but only a single parent, with the effect of a parent applied to all its child nodes; an operation performed on a group automatically propagates its effect to all of its members. In many programs, associating a geometrical transformation matrix (see also transformation and matrix) at each group level and concatenating such matrices together is an efficient and natural way to process such operations. A common feature, for instance, is the ability to group related shapes and objects into a compound object that can then be manipulated as easily as a single object. In vector-based graphics editing, each leaf node in a scene graph represents some atomic unit of the document, usually a shape such as an ellipse or Bezier path. Although shapes themselves (particularly paths) can be decomposed further into nodes such as spline nodes, it is practical to think of the scene graph as composed of shapes rather than going to a lower level of representation. Another useful and user-driven node concept is the layer. A layer acts like a transparent sheet upon which any number of shapes and shape groups can be placed. The document then becomes a set of layers, any of which can be conveniently made invisible, dimmed, or locked (made read-only). Some applications place all layers in a linear list, while others support layers within layers to any desired depth. Internally, there may be no real structural difference between layers and groups at all, since they are both just nodes of a scene graph. If differences are needed, a common type declaration in C++ would be to make a generic node class, and then derive layers and groups as subclasses. A visibility member, for example, would be a feature of a layer, but not necessarily of a group.
